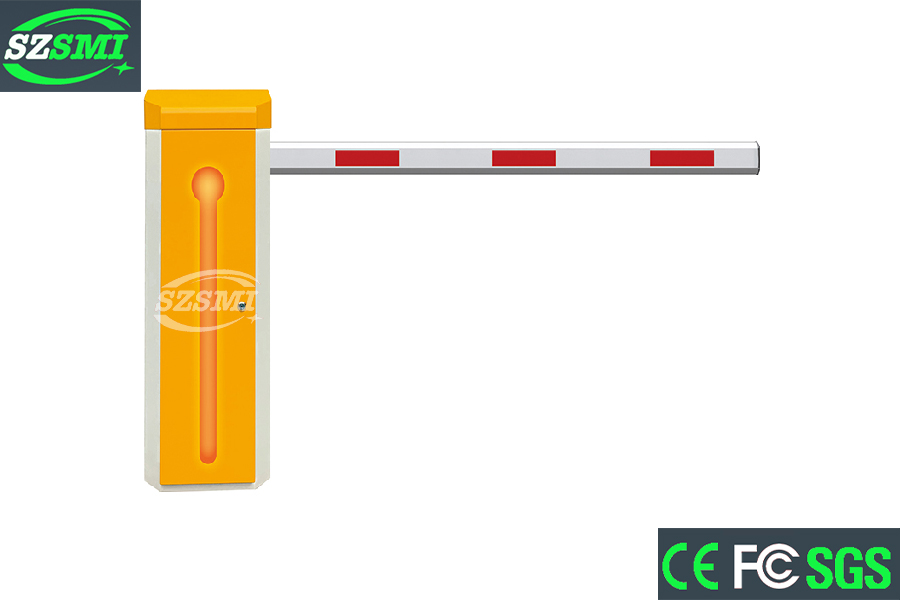

BG03 Barrier Gate/ Boom Barrier
  • BG03 Barrier Gate/ Boom Barrier
BG03 Barrier Gate/ Boom Barrier
No More
MESSAGE
1.  Mechanical and electrical integration:quickly assembly.easy maintenance.
2. Molding production: high precision, fast efficiency and guaranteed quality.
3. Worm-gear secondary variable speed transmission: motor wheel design, gate opening by manually when power off, no blocking, no oil leakage, large torque, low noise ,can normally operation at the temperature of minus 45 degrees,etc.
4. DC brushless motor design:low consumption, high efficiency, no overheat, wide speed adjustment.
5. Hall limit:automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at constant speed.
6. Curved triple connecting rod structure,easy to adjust.
7. Arm direction quickly interchanged interchanged according Io different directions on construction site, reduce inventory and capital pressure.
8. Special DC brushless controller:use integrated chip drive,fast processing speed,large memory,powerful function: 24V low voltage power supply ,adapt to global voltage.

Functions
1 .The operation speed can be adjusted(2sec to 6sec).
2.Arm direction can be quickly interchanged.
3.Barrier gate up &down signal relay switch output.
4.R&G Traffic light relay switch signal output.
5.External loop detector signal anti-smashing interface.
6.Infrared sensor signal anti-smashing interface.
7.Count mode interface.
8.Arm swing out function,when the vehicle hit the barrier gate.the arm can be swing out to avoid further damage.
1. High-sensitivity arm auto reverse function (intensity can be adjusted).
2. Parking system interface.
3. RS485 communication interface.
4. Power off the backup battery interface.

Technical Data
