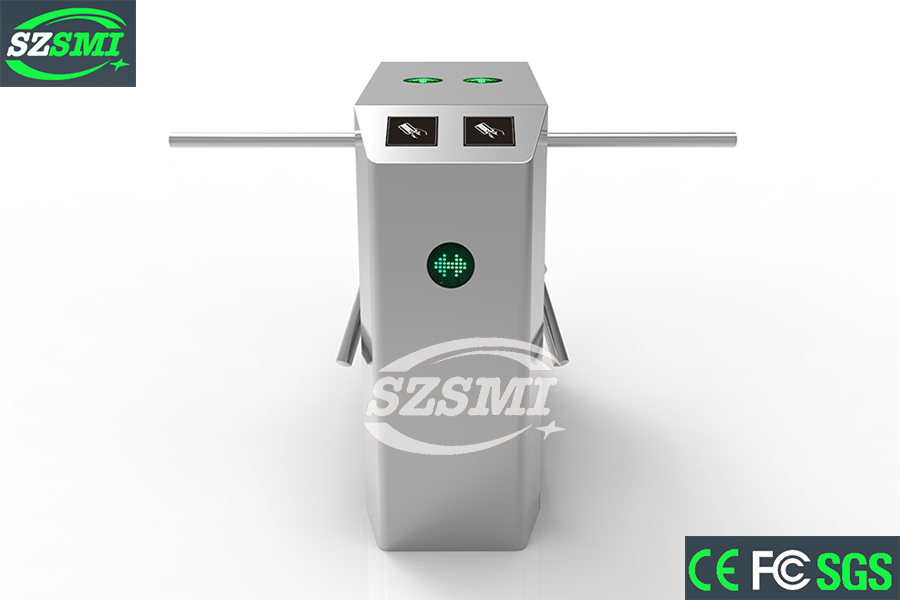

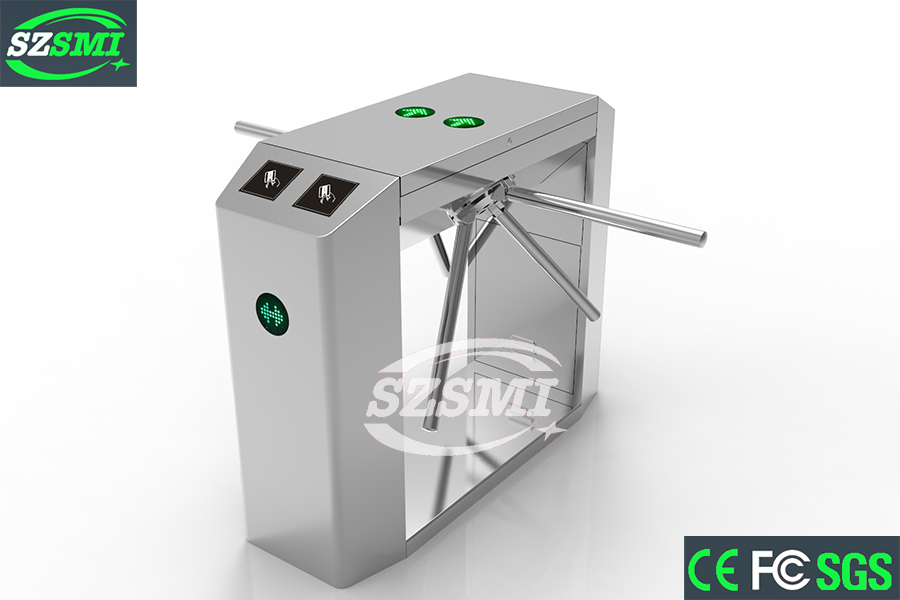

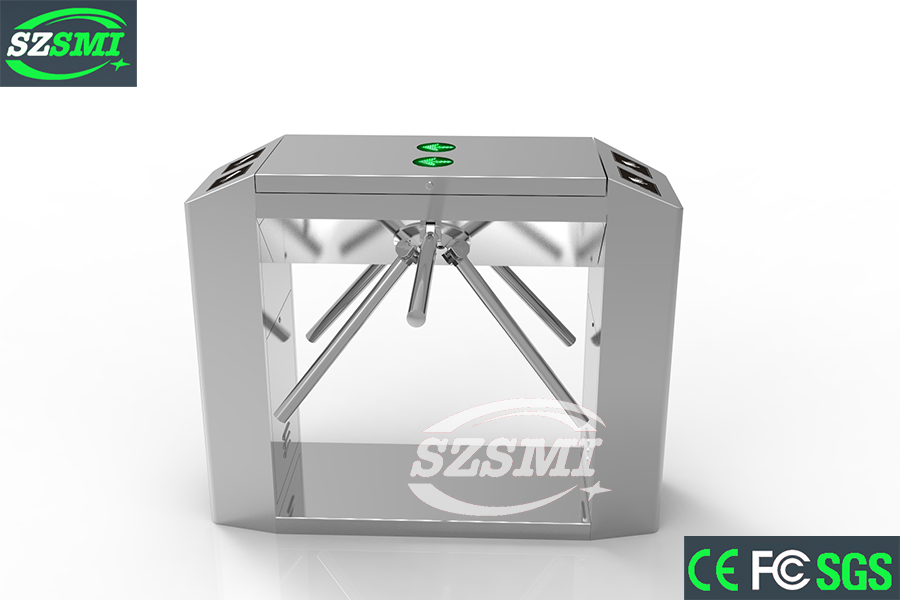

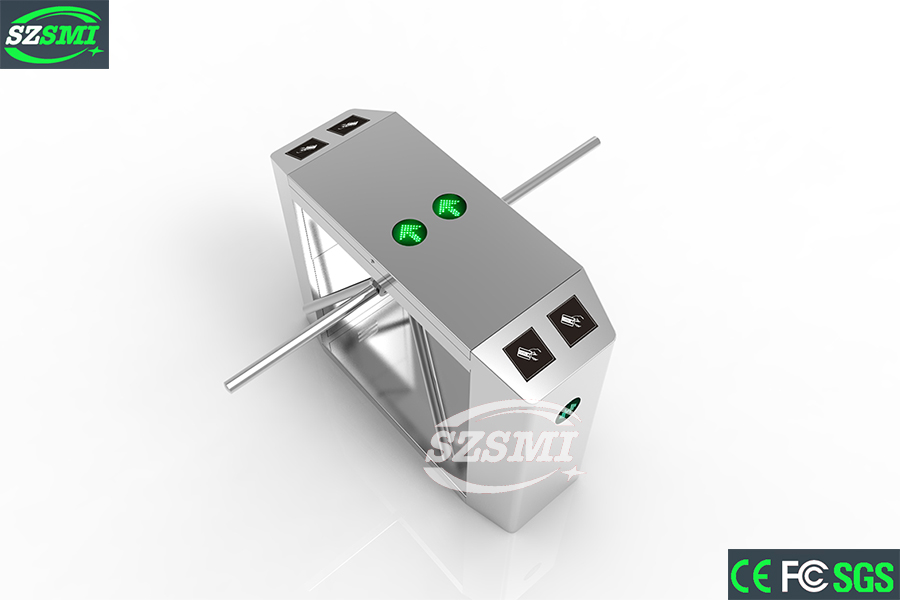

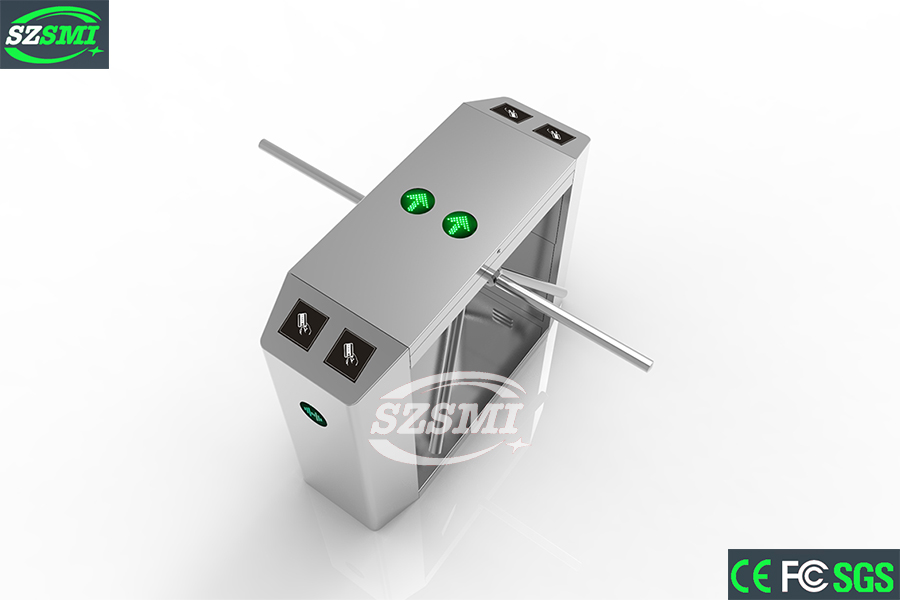

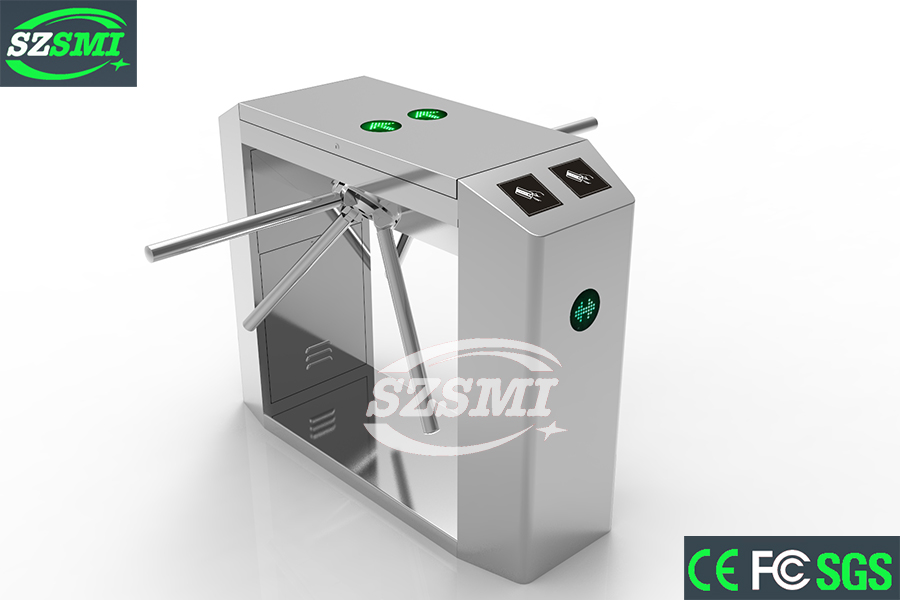

STDZ05-DTD Tripod Turnstile/ Tripod Barrier
Feature
● After passing over 60 degrees, it is prohibited to reverse in the original direction
● Automatic opening after emergency fire signal input.
● Anti-following : prevent illegal passing.
● Auto replacement function, re-position after person pass by.
● Anti tail function auto lock once turn 120 degree.
● Arms auto drop when power off , insure unblocked when accident.
● Standard electronic interface, remote control through internet which is also could
connect variety card readers and receive relay signal to work.
● Diverse control mode optional, changeable due to varying, convenient for your
Manage.
● Auto alert error function, comfort for user maintain and operate.
● Manual button or remote control ,Bi-directional passage
● Open signal with memory or with out set function
● Red and green light to show pass or stop, leisure to exit and entrance
Technical parameter
|
STDZ05-DTD |
|
|
Power voltage |
AC220±10%,50Hz |
|
Drive voltage |
AC12V+AC18V |
|
(Operation condition) |
-15℃～+60℃ |
|
Relative humidity |
≦95%,None-condensation |
|
Input signal |
12v DC level or 12v pulse>100ms |
|
Power Consump |
≤100W |
|
Length of the bar |
≤550mm |
|
Service life |
≥5 million times |
|
Open angle |
120° |
|
Pass speed |
≦30 person/minutes |
|
Structure |
SUS304 Stainless steel Cover:1.2mm, Body:1.0mm |
|
Open direction |
Single and Double(optional) |
|
Work environment |
Outdoor and indoor |
|
IP Degree |
IP43 |
|
Width of passage |
≤550mm |
|

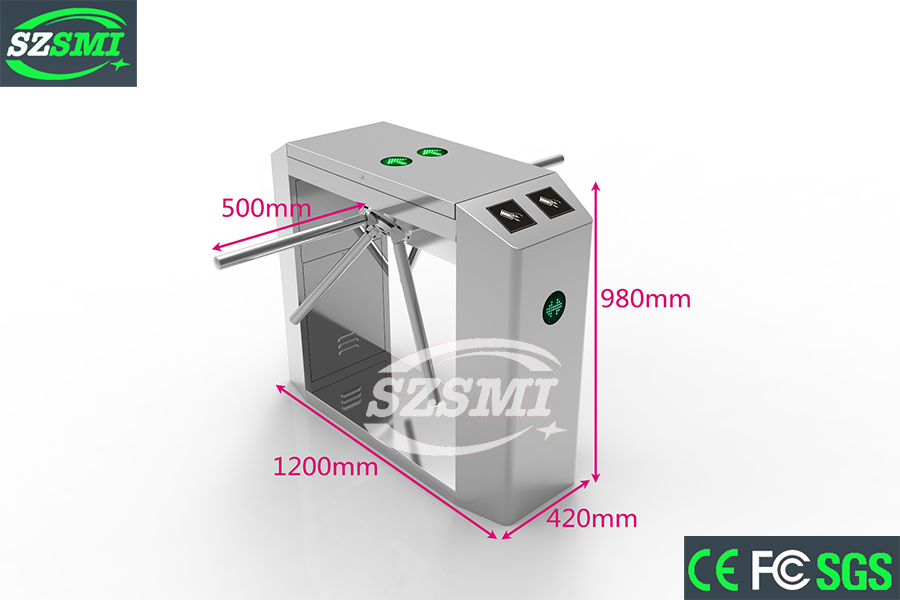

Machine sizes |
1200*420*980 mm |
|
Net weight approx. |
50 kg |
